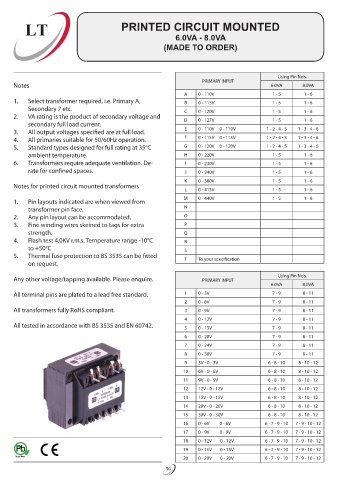

LT PRINTED CIRCUIT MOUNTED
6.0VA - 8.0VA
(MADE TO ORDER)

Using Pin No’s.
PRIMARY INPUT
Notes 6.0VA 8.0VA
A 0 - 110V 1 - 5 1 - 6
1. Select transformer required, i.e. Primary A, B 0 - 115V 1 - 5 1 - 6
Secondary 7 etc. C 0 - 120V 1 - 5 1 - 6
2. VA rating is the product of secondary voltage and D 0 - 127V 1 - 5 1 - 6
secondary full load current.
3. All output voltages specified are at full load. E 0 - 110V 0 - 110V 1 - 2 - 4 - 5 1 - 3 - 4 - 6
4. All primaries suitable for 50/60Hz operation. F 0 - 115V 0 - 115V 1 - 2 - 4 - 5 1 - 3 - 4 - 6
5. Standard types designed for full rating at 35°C G 0 - 120V 0 - 120V 1 - 2 - 4 - 5 1 - 3 - 4 - 6
ambient temperature. H 0 - 220V 1 - 5 1 - 6
6. Transformers require adequate ventilation. De- I 0 - 230V 1 - 5 1 - 6
rate for confined spaces. J 0 - 240V 1 - 5 1 - 6
K 0 - 380V 1 - 5 1 - 6
Notes for printed circuit mounted transformers L 0 - 415V 1 - 5 1 - 6
1. Pin layouts indicated are when viewed from M 0 - 440V 1 - 5 1 - 6
transformer pin face. N
2. Any pin layout can be accommodated. O
3. Fine winding wires skeined to tags for extra P
strength. Q
4. Flash test 4.0KV r.m.s. Temperature range -10°C R
to +50°C S
5. Thermal fuse protection to BS 3535 can be fitted T To your specification
on request.

Any other voltage/tapping available. Please enquire. PRIMARY INPUT Using Pin No’s.
6.0VA 8.0VA
All terminal pins are plated to a lead free standard. 1 0 - 3V 7 - 9 8 - 11
2 0 - 6V 7 - 9 8 - 11
All transformers fully RoHS compliant. 3 0 - 9V 7 - 9 8 - 11
4 0 - 12V 7 - 9 8 - 11
All tested in accordance with BS 3535 and EN 60742. 5 0 - 15V 7 - 9 8 - 11
6 0 - 20V 7 - 9 8 - 11
7 0 - 24V 7 - 9 8 - 11
8 0 - 30V 7 - 9 8 - 11
9 3V - 0 - 3V 6 - 8 - 10 8 - 10 - 12
10 6V - 0 - 6V 6 - 8 - 10 8 - 10 - 12
11 9V - 0 - 9V 6 - 8 - 10 8 - 10 - 12
12 12V - 0 - 12V 6 - 8 - 10 8 - 10 - 12
13 15V - 0 - 15V 6 - 8 - 10 8 - 10 - 12
14 20V - 0 - 20V 6 - 8 - 10 8 - 10 - 12
15 30V - 0 - 30V 6 - 8 - 10 8 - 10 - 12
16 0 - 6V 0 - 6V 6 - 7 - 9 - 10 7 - 9 - 10 - 12
17 0 - 9V 0 - 9V 6 - 7 - 9 - 10 7 - 9 - 10 - 12
18 0 - 12V 0 - 12V 6 - 7 - 9 - 10 7 - 9 - 10 - 12
19 0 - 15V 0 - 15V 6 - 7 - 9 - 10 7 - 9 - 10 - 12
20 0 - 20V 0 - 20V 6 - 7 - 9 - 10 7 - 9 - 10 - 12
