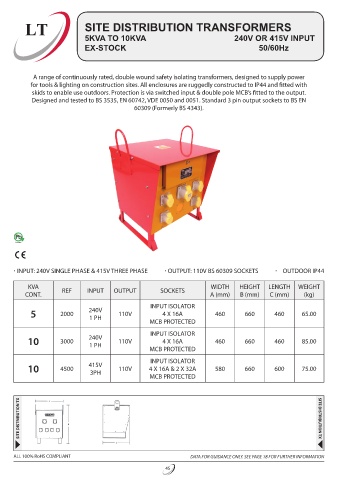

Page 49 - Louth Transformer Catalogue

LT SITE DISTRIBUTION TRANSFORMERS
5KVA TO 10KVA 240V OR 415V INPUT
EX-STOCK 50/60Hz

A range of continuously rated, double wound safety isolating transformers, designed to supply power
for tools & lighting on construction sites. All enclosures are ruggedly constructed to IP44 and fitted with
skids to enable use outdoors. Protection is via switched input & double pole MCB’s fitted to the output.
Designed and tested to BS 3535, EN 60742, VDE 0050 and 0051. Standard 3 pin output sockets to BS EN
60309 (Formerly BS 4343).

· INPUT: 240V SINGLE PHASE & 415V THREE PHASE · OUTPUT: 110V BS 60309 SOCKETS · OUTDOOR IP44

KVA REF INPUT OUTPUT SOCKETS WIDTH HEIGHT LENGTH WEIGHT
CONT. A (mm) B (mm) C (mm) (kg)
INPUT ISOLATOR
5 2000 240V 110V 4 X 16A 460 660 460 65.00
1 PH
MCB PROTECTED
INPUT ISOLATOR
10 3000 240V 110V 4 X 16A 460 660 460 85.00
1 PH
MCB PROTECTED
INPUT ISOLATOR
10 4500 415V 110V 4 X 16A & 2 X 32A 580 660 600 75.00
3PH
MCB PROTECTED

SITE DISTRIBUTION TX SITE DISTRIBUTION TX

ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
