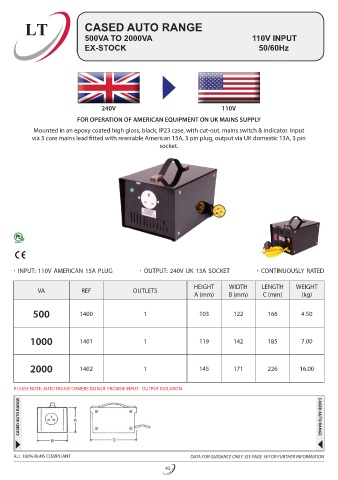

LT CASED AUTO RANGE
500VA TO 2000VA 110V INPUT
EX-STOCK 50/60Hz
240V 110V
FOR OPERATION OF AMERICAN EQUIPMENT ON UK MAINS SUPPLY
Mounted in an epoxy coated high gloss, black, IP23 case, with cut-out, mains switch & indicator. Input
via 3 core mains lead fitted with rewirable American 15A, 3 pin plug, output via UK domestic 13A, 3 pin
socket.
· INPUT: 110V AMERICAN 15A PLUG · OUTPUT: 240V UK 13A SOCKET · CONTINUOUSLY RATED
HEIGHT WIDTH LENGTH WEIGHT
VA REF OUTLETS
A (mm) B (mm) C (mm) (kg)
500 1400 1 103 122 166 4.50
1000 1401 1 119 142 185 7.00
2000 1402 1 145 171 226 16.00
PLEASE NOTE: AUTO TRANSFORMERS DO NOT PROVIDE INPUT - OUTPUT ISOLATION
CASED AUTO RANGE CASED AUTO RANGE
ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
