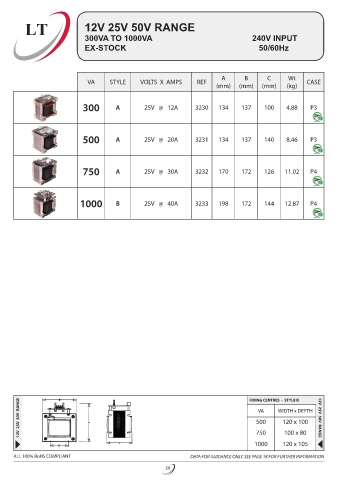

LT 12V 25V 50V RANGE
LT
300VA TO 1000VA 240V INPUT
EX-STOCK 50/60Hz

A B C Wt
VA STYLE VOLTS X AMPS REF CASE
(mm) (mm) (mm) (kg)
300 A 25V @ 12A 3230 134 137 100 4.88 P3

500 A 25V @ 20A 3231 134 137 140 8.46 P3

750 A 25V @ 30A 3232 170 172 126 11.02 P4

1000 B 25V @ 40A 3233 198 172 144 12.87 P4

FIXING CENTRES - STYLE B
CONTROL PANEL 12V 25V 50V RANGE FIXING CENTRES WIDTH x DEPTH CONTROL PANEL
VA
500
120 x 100
750
100 x 80
12V 25V 50V RANGE
1000 120 x 105
ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
