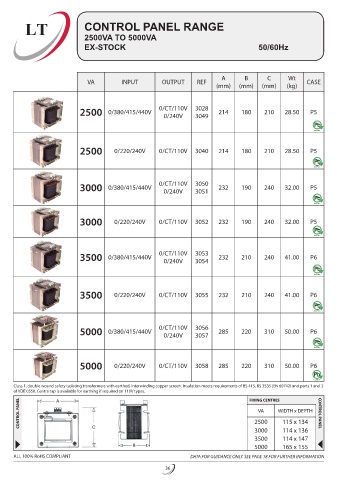

LT CONTROL PANEL RANGE
2500VA TO 5000VA
EX-STOCK 50/60Hz

A B C Wt
VA INPUT OUTPUT REF CASE
(mm) (mm) (mm) (kg)
0/CT/110V 3028
2500 0/380/415/440V 0/240V 3049 214 180 210 28.50 P5

2500 0/220/240V 0/CT/110V 3040 214 180 210 28.50 P5

0/CT/110V 3050
3000 0/380/415/440V 0/240V 3051 232 190 240 32.00 P5

3000 0/220/240V 0/CT/110V 3052 232 190 240 32.00 P5

0/CT/110V 3053
3500 0/380/415/440V 0/240V 3054 232 210 240 41.00 P6

3500 0/220/240V 0/CT/110V 3055 232 210 240 41.00 P6

0/CT/110V 3056
5000 0/380/415/440V 0/240V 3057 285 220 310 50.00 P6

5000 0/220/240V 0/CT/110V 3058 285 220 310 50.00 P6

Class 1, double wound safety isolating transformers with earthed, interwinding copper screen. Insulation meets requirements of BS 415, BS 3535 (EN 60742) and parts 1 and 3
of VDE 0550. Centre tap is available for earthing if required on 110V types. FIXING CENTRES
CONTROL PANEL 2500 WIDTH x DEPTH CONTROL PANEL
A
VA
115 x 134
C
3000 114 x 136
3500 114 x 147
B 5000 165 x 155
ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
