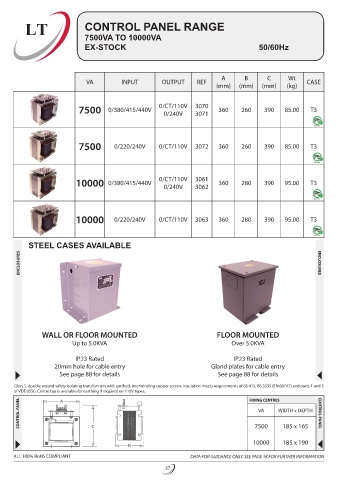

Page 41 - Louth Transformer Catalogue

LT CONTROL PANEL RANGE
7500VA TO 10000VA
EX-STOCK 50/60Hz

A B C Wt
VA INPUT OUTPUT REF CASE
(mm) (mm) (mm) (kg)
7500 0/380/415/440V 0/CT/110V 3070 360 260 390 85.00 T3
3071
0/240V

7500 0/220/240V 0/CT/110V 3072 360 260 390 85.00 T3

0/CT/110V 3061
10000 0/380/415/440V 0/240V 3062 360 280 390 95.00 T3

10000 0/220/240V 0/CT/110V 3063 360 280 390 95.00 T3

STEEL CASES AVAILABLE
ENCLOSURES ENCLOSURES

WALL OR FLOOR MOUNTED FLOOR MOUNTED
Up to 5.0KVA Over 5.0KVA
IP23 Rated IP23 Rated
20mm hole for cable entry Gland plates for cable entry
See page 88 for details See page 88 for details
Class 1, double wound safety isolating transformers with earthed, interwinding copper screen. Insulation meets requirements of BS 415, BS 3535 (EN 60742) and parts 1 and 3
of VDE 0550. Centre tap is available for earthing if required on 110V types. FIXING CENTRES
CONTROL PANEL C 7500 WIDTH x DEPTH CONTROL PANEL
A
VA
185 x 165
10000 185 x 190
B
ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
37
