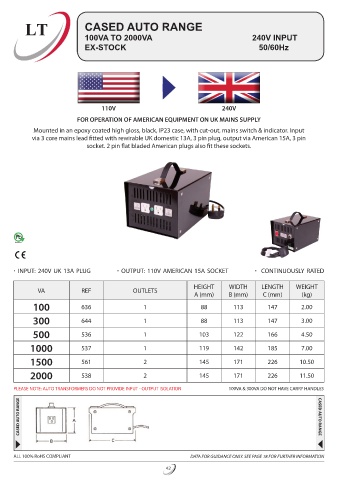

Page 46 - Louth Transformer Catalogue

LT CASED AUTO RANGE
100VA TO 2000VA 240V INPUT
EX-STOCK 50/60Hz

110V 240V
FOR OPERATION OF AMERICAN EQUIPMENT ON UK MAINS SUPPLY
Mounted in an epoxy coated high gloss, black, IP23 case, with cut-out, mains switch & indicator. Input
via 3 core mains lead fitted with rewirable UK domestic 13A, 3 pin plug, output via American 15A, 3 pin
socket. 2 pin flat bladed American plugs also fit these sockets.

· INPUT: 240V UK 13A PLUG · OUTPUT: 110V AMERICAN 15A SOCKET · CONTINUOUSLY RATED

HEIGHT WIDTH LENGTH WEIGHT
VA REF OUTLETS
A (mm) B (mm) C (mm) (kg)
100 636 1 88 113 147 2.00
300 644 1 88 113 147 3.00
500 536 1 103 122 166 4.50
1000 537 1 119 142 185 7.00
1500 561 2 145 171 226 10.50
2000 538 2 145 171 226 11.50

PLEASE NOTE: AUTO TRANSFORMERS DO NOT PROVIDE INPUT - OUTPUT ISOLATION 100VA & 300VA DO NOT HAVE CARRY HANDLES
CASED AUTO RANGE CASED AUTO RANGE

ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
