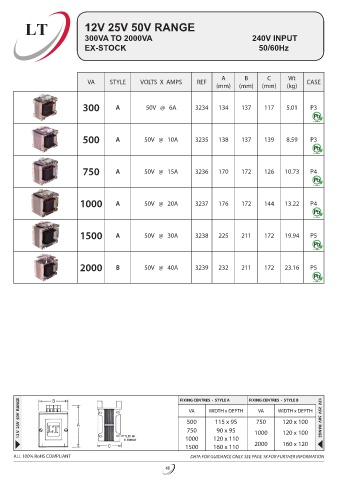

Page 44 - Louth Transformer Catalogue

LT 12V 25V 50V RANGE
LT
300VA TO 2000VA 240V INPUT
EX-STOCK 50/60Hz

A B C Wt
VA STYLE VOLTS X AMPS REF CASE
(mm) (mm) (mm) (kg)
300 A 50V @ 6A 3234 134 137 117 5.01 P3

500 A 50V @ 10A 3235 138 137 139 8.59 P3

750 A 50V @ 15A 3236 170 172 126 10.73 P4

1000 A 50V @ 20A 3237 176 172 144 13.22 P4

1500 A 50V @ 30A 3238 225 211 172 19.94 P5

2000 B 50V @ 40A 3239 232 211 172 23.16 P5

FIXING CENTRES
CONTROL PANEL 12 V 25V 50V RANGE B A FIXING CENTRES - STYLE A FIXING CENTRES - STYLE B CONTROL PANEL
VA
WIDTH x DEPTH
VA
WIDTH x DEPTH
120 x 100
115 x 95
750
500
90 x 95
750
12V 25V 50V RANGE
2000
160 x 120
C 1000 120 x 110 1000 120 x 100
1500
160 x 110
ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
