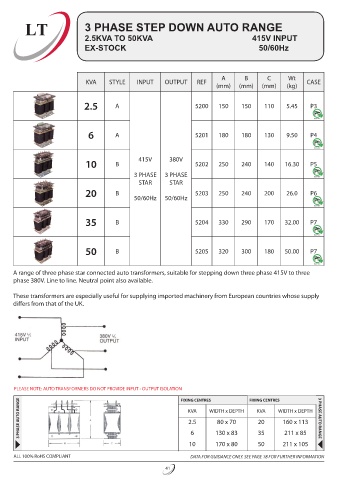

LT 3 PHASE STEP DOWN AUTO RANGE
2.5KVA TO 50KVA 415V INPUT
EX-STOCK 50/60Hz
A B C Wt
KVA STYLE INPUT OUTPUT REF CASE
(mm) (mm) (mm) (kg)
2.5 A 5200 150 150 110 5.45 P3
6 A 5201 180 180 130 9.50 P4
10 B 415V 380V 5202 250 240 140 16.30 P5
3 PHASE 3 PHASE
STAR STAR
20 B 5203 250 240 200 26.0 P6
50/60Hz 50/60Hz
35 B 5204 330 290 170 32.00 P7
50 B 5205 320 300 180 50.00 P7
A range of three phase star connected auto transformers, suitable for stepping down three phase 415V to three
phase 380V. Line to line. Neutral point also available.
These transformers are especially useful for supplying imported machinery from European countries whose supply
differs from that of the UK.
PLEASE NOTE: AUTO TRANSFORMERS DO NOT PROVIDE INPUT - OUTPUT ISOLATION FIXING CENTRES FIXING CENTRES
3 PHASE AUTO RANGE KVA WIDTH x DEPTH KVA WIDTH x DEPTH 3 PHASE AUTO RANGE
80 x 70
20
160 x 113
2.5
211 x 85
6
50
10 130 x 83 35 211 x 105
170 x 80
ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
