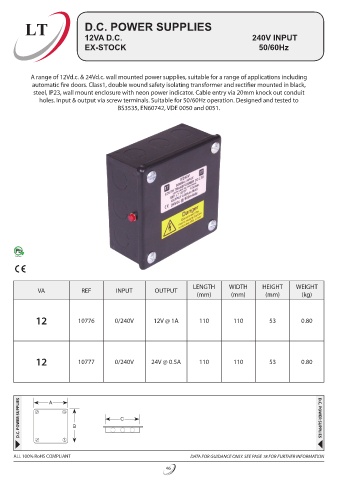

LT             D.C. POWER SUPPLIES
                      12VA D.C.                                     240V INPUT
                      EX-STOCK                                   50/60Hz



         A range of 12Vd.c. & 24Vd.c. wall mounted power supplies, suitable for a range of applications including
         automatic fire doors. Class1, double wound safety isolating transformer and rectifier mounted in black,
         steel, IP23, wall mount enclosure with neon power indicator. Cable entry via 20mm knock out conduit
           holes. Input & output via screw terminals. Suitable for 50/60Hz operation. Designed and tested to
                              BS3535, EN60742, VDE 0050 and 0051.


























                                                 LENGTH   WIDTH   HEIGHT   WEIGHT
          VA         REF      INPUT    OUTPUT
                                                  (mm)    (mm)     (mm)     (kg)

          12        10776     0/240V   12V @ 1A   110      110      53      0.80




          12        10777     0/240V   24V @ 0.5A  110     110      53      0.80





      D.C. POWER SUPPLIES  A  B  C                                              D.C. POWER SUPPLIES






    ALL 100% RoHS COMPLIANT                     DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
