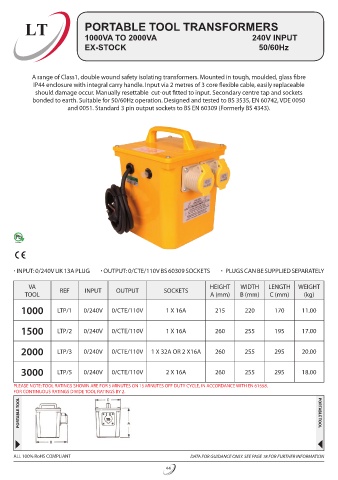

Page 48 - Louth Transformer Catalogue

LT PORTABLE TOOL TRANSFORMERS
1000VA TO 2000VA 240V INPUT
EX-STOCK 50/60Hz

A range of Class1, double wound safety isolating transformers. Mounted in tough, moulded, glass fibre
IP44 enclosure with integral carry handle. Input via 2 metres of 3 core flexible cable, easily replaceable
should damage occur. Manually resettable cut-out fitted to input. Secondary centre tap and sockets
bonded to earth. Suitable for 50/60Hz operation. Designed and tested to BS 3535, EN 60742, VDE 0050
and 0051. Standard 3 pin output sockets to BS EN 60309 (Formerly BS 4343).

· INPUT: 0/240V UK 13A PLUG · OUTPUT: 0/CTE/110V BS 60309 SOCKETS · PLUGS CAN BE SUPPLIED SEPARATELY

VA REF INPUT OUTPUT SOCKETS HEIGHT WIDTH LENGTH WEIGHT
TOOL A (mm) B (mm) C (mm) (kg)
1000 LTP/1 0/240V 0/CTE/110V 1 X 16A 215 220 170 11.00

1500 LTP/2 0/240V 0/CTE/110V 1 X 16A 260 255 195 17.00

2000 LTP/3 0/240V 0/CTE/110V 1 X 32A OR 2 X16A 260 255 295 20.00

3000 LTP/5 0/240V 0/CTE/110V 2 X 16A 260 255 295 18.00
PLEASE NOTE: TOOL RATINGS SHOWN ARE FOR 5 MINUTES ON 15 MINUTES OFF DUTY CYCLE, IN ACCORDANCE WITH EN 61558.
FOR CONTINUOUS RATINGS DIVIDE TOOL RATINGS BY 2.
PORTABLE TOOL PORTABLE TOOL

ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
