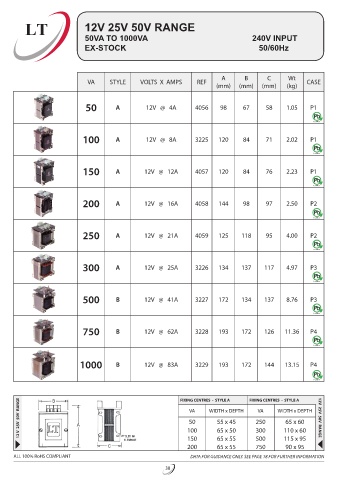

Page 42 - Louth Transformer Catalogue

LT 12V 25V 50V RANGE
LT
50VA TO 1000VA 240V INPUT
EX-STOCK 50/60Hz

A B C Wt
VA STYLE VOLTS X AMPS REF CASE
(mm) (mm) (mm) (kg)
50 A 12V @ 4A 4056 98 67 58 1.05 P1

100 A 12V @ 8A 3225 120 84 71 2.02 P1

150 A 12V @ 12A 4057 120 84 76 2.23 P1

200 A 12V @ 16A 4058 144 98 97 2.50 P2

250 A 12V @ 21A 4059 125 118 95 4.00 P2

300 A 12V @ 25A 3226 134 137 117 4.97 P3

500 B 12V @ 41A 3227 172 134 137 8.76 P3

750 B 12V @ 62A 3228 193 172 126 11.36 P4

1000 B 12V @ 83A 3229 193 172 144 13.15 P4

FIXING CENTRES - STYLE A
CONTROL PANEL 12 V 25V 50V RANGE B A FIXING CENTRES - STYLE A FIXING CENTRES WIDTH x DEPTH CONTROL PANEL
WIDTH x DEPTH
VA
VA
55 x 45
50
65 x 60
250
65 x 55
115 x 95
500
150
12V 25V 50V RANGE
750
C 100 65 x 50 300 110 x 60
65 x 55
200
90 x 95
ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
