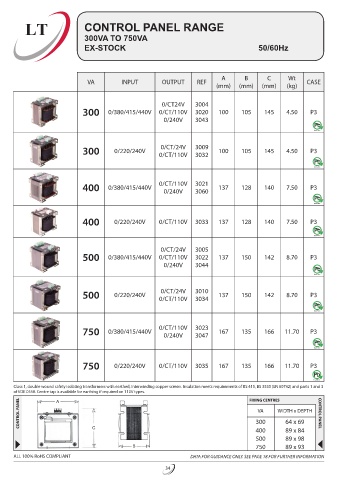

Page 38 - Louth Transformer Catalogue

LT CONTROL PANEL RANGE
300VA TO 750VA
EX-STOCK 50/60Hz

A B C Wt
VA INPUT OUTPUT REF CASE
(mm) (mm) (mm) (kg)
0/CT24V 3004
300 0/380/415/440V 0/CT/110V 3020 100 105 145 4.50 P3
0/240V 3043

0/CT/24V
300 0/220/240V 0/CT/110V 3009 100 105 145 4.50 P3
3032

400 0/380/415/440V 0/CT/110V 3021 137 128 140 7.50 P3
0/240V
3060

400 0/220/240V 0/CT/110V 3033 137 128 140 7.50 P3

0/CT/24V 3005
500 0/380/415/440V 0/CT/110V 3022 137 150 142 8.70 P3
0/240V 3044

0/CT/24V
500 0/220/240V 0/CT/110V 3010 137 150 142 8.70 P3
3034

750 0/380/415/440V 0/CT/110V 3023 167 135 166 11.70 P3
0/240V
3047

750 0/220/240V 0/CT/110V 3035 167 135 166 11.70 P3

Class 1, double wound safety isolating transformers with earthed, interwinding copper screen. Insulation meets requirements of BS 415, BS 3535 (EN 60742) and parts 1 and 3
of VDE 0550. Centre tap is available for earthing if required on 110V types. FIXING CENTRES
CONTROL PANEL 300 WIDTH x DEPTH CONTROL PANEL
A
VA
64 x 69
C
400 89 x 84
500 89 x 98
B 750 89 x 93
ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
