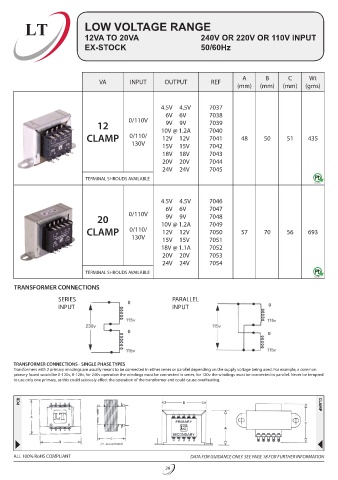

Page 33 - Louth Transformer Catalogue

LT LOW VOLTAGE RANGE
12VA TO 20VA 240V OR 220V OR 110V INPUT
EX-STOCK 50/60Hz

A B C Wt
VA INPUT OUTPUT REF
(mm) (mm) (mm) (gms)
4.5V 4.5V 7037
6V 6V 7038
9V 9V
12 0/110V 10V @ 1.2A 7039
7040
CLAMP 0/110/ 12V 12V 7041 48 50 51 435
130V 15V 15V 7042
18V 18V 7043
20V 20V 7044
24V 24V 7045
TERMINAL SHROUDS AVAILABLE

4.5V 4.5V 7046
6V 6V 7047
9V 9V
20 0/110V 10V @ 1.2A 7048
7049
CLAMP 0/110/ 12V 12V 7050 57 70 56 693
130V 15V 15V 7051
18V @ 1.1A 7052
20V 20V 7053
24V 24V 7054
TERMINAL SHROUDS AVAILABLE
TRANSFORMER CONNECTIONS
SERIES PARALLEL
INPUT INPUT

TRANSFORMER CONNECTIONS - SINGLE PHASE TYPES
Transformers with 2 primary windings are usually meant to be connected in either series or parallel depending on the supply voltage being used. For example, a common
primary found would be 0-120v, 0-120v, for 240v operation the windings must be connected in series, for 120v the windings must be connected in parallel. Never be tempted
to use only one primary, as this could seriously affect the operation of the transformer and could cause overheating.

PCB CLAMP

ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
