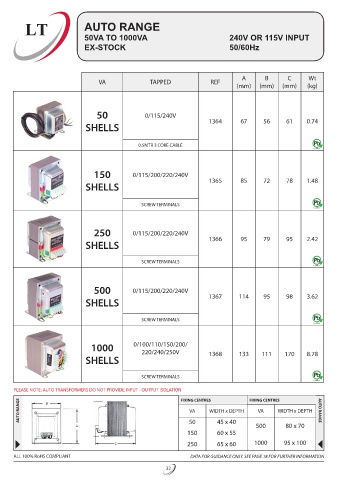

LT AUTO RANGE
50VA TO 1000VA 240V OR 115V INPUT
EX-STOCK 50/60Hz
A B C Wt
VA TAPPED REF
(mm) (mm) (mm) (kg)
50 0/115/240V
SHELLS 1364 67 56 61 0.74
0.5MTR 3 CORE CABLE
150 0/115/200/220/240V
SHELLS 1365 85 72 78 1.48
SCREW TERMINALS
250 0/115/200/220/240V
SHELLS 1366 95 79 95 2.42
SCREW TERMINALS
500 0/115/200/220/240V
SHELLS 1367 114 95 98 3.62
SCREW TERMINALS
1000 0/100/110/150/200/
220/240/250V
SHELLS 1368 133 111 170 8.78
SCREW TERMINALS
PLEASE NOTE: AUTO TRANSFORMERS DO NOT PROVIDE INPUT - OUTPUT ISOLATION FIXING CENTRES FIXING CENTRES
AUTO RANGE VA WIDTH x DEPTH VA WIDTH x DEPTH AUTO RANGE
50
45 x 40
500 80 x 70
150 60 x 55
250 65 x 60 1000 95 x 100
ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
