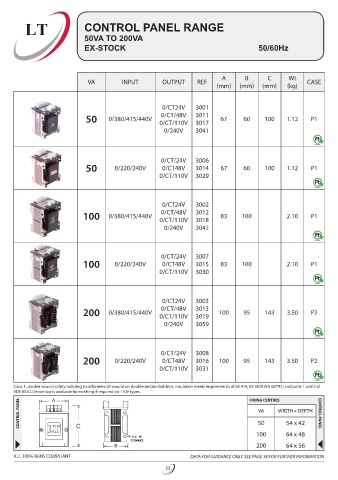

Page 37 - Louth Transformer Catalogue

LT CONTROL PANEL RANGE
50VA TO 200VA
EX-STOCK 50/60Hz

A B C Wt
VA INPUT OUTPUT REF CASE
(mm) (mm) (mm) (kg)
0/CT24V 3001
0/CT/48V
50 0/380/415/440V 0/CT/110V 3011 67 60 100 1.12 P1
3017
0/240V 3041

0/CT/24V 3006
50 0/220/240V 0/CT48V 3014 67 60 100 1.12 P1
0/CT/110V 3029

0/CT24V 3002
0/CT/48V
100 0/380/415/440V 0/CT/110V 3012 83 100 2.10 P1
3018
0/240V 3042

0/CT/24V 3007
100 0/220/240V 0/CT48V 3015 83 100 2.10 P1
0/CT/110V 3030

0/CT24V 3003
0/CT/48V
200 0/380/415/440V 0/CT/110V 3013 100 95 143 3.50 P2
3019
0/240V 3059

0/CT/24V 3008
200 0/220/240V 0/CT48V 3016 100 95 143 3.50 P2
0/CT/110V 3031

Class 1, double wound safety isolating transformers all wound on double section bobbins. Insulation meets requirements of BS 415, BS 3535 (EN 60742) and parts 1 and 3 of
VDE 0550. Centre tap is available for earthing if required on 110V types. FIXING CENTRES
A
CONTROL PANEL 50 WIDTH x DEPTH CONTROL PANEL
VA
54 x 42
C
100 64 x 48
B 200 64 x 56
ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
33
