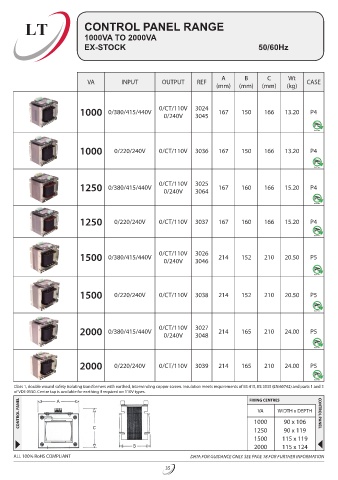

Page 39 - Louth Transformer Catalogue

LT CONTROL PANEL RANGE
1000VA TO 2000VA
EX-STOCK 50/60Hz

A B C Wt
VA INPUT OUTPUT REF CASE
(mm) (mm) (mm) (kg)
0/CT/110V 3024
1000 0/380/415/440V 0/240V 3045 167 150 166 13.20 P4

1000 0/220/240V 0/CT/110V 3036 167 150 166 13.20 P4

0/CT/110V 3025
1250 0/380/415/440V 0/240V 3064 167 160 166 15.20 P4

1250 0/220/240V 0/CT/110V 3037 167 160 166 15.20 P4

0/CT/110V 3026
1500 0/380/415/440V 0/240V 3046 214 152 210 20.50 P5

1500 0/220/240V 0/CT/110V 3038 214 152 210 20.50 P5

0/CT/110V 3027
2000 0/380/415/440V 0/240V 3048 214 165 210 24.00 P5

2000 0/220/240V 0/CT/110V 3039 214 165 210 24.00 P5

Class 1, double wound safety isolating transformers with earthed, interwinding copper screen. Insulation meets requirements of BS 415, BS 3535 (EN 60742) and parts 1 and 3
of VDE 0550. Centre tap is available for earthing if required on 110V types. FIXING CENTRES
CONTROL PANEL 1000 WIDTH x DEPTH CONTROL PANEL
A
VA
90 x 106
C
1250 90 x 119
1500 115 x 119
B 2000 115 x 124
ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
