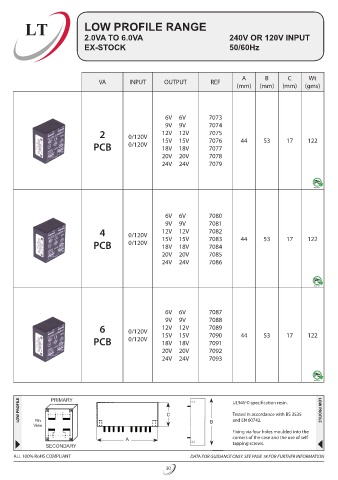

LT LOW PROFILE RANGE
2.0VA TO 6.0VA 240V OR 120V INPUT
EX-STOCK 50/60Hz

A B C Wt
VA INPUT OUTPUT REF
(mm) (mm) (mm) (gms)

6V 6V 7073
9V 9V 7074
2 0/120V 12V 12V 7075
PCB 0/120V 15V 15V 7076 44 53 17 122
18V 18V
7077
20V 20V 7078
24V 24V 7079

6V 6V 7080
9V 9V 7081
4 0/120V 12V 12V 7082
PCB 0/120V 15V 15V 7083 44 53 17 122
7084
18V 18V
20V 20V 7085
24V 24V 7086

6V 6V 7087
9V 9V 7088
6 0/120V 12V 12V 7089
PCB 0/120V 15V 15V 7090 44 53 17 122
18V 18V
7091
20V 20V 7092
24V 24V 7093

LOW PROFILE PRIMARY C UL94V-0 specification resin.
Tested in accordance with BS 3535
Pin
View B and EN 60742. LOW PROFILE
Fixing via four holes moulded into the
A corners of the case and the use of self
SECONDARY tapping screws.
ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
