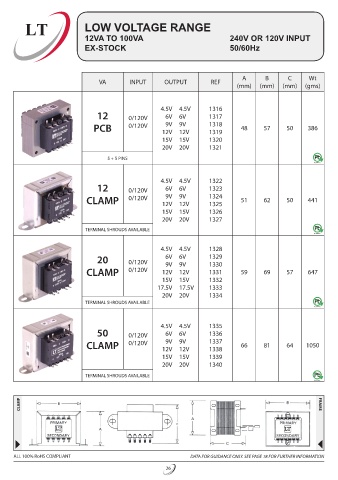

LT LOW VOLTAGE RANGE
12VA TO 100VA 240V OR 120V INPUT
EX-STOCK 50/60Hz

A B C Wt
VA INPUT OUTPUT REF
(mm) (mm) (mm) (gms)
4.5V 4.5V 1316
12 0/120V 6V 6V 1317
9V 9V
PCB 0/120V 12V 12V 1318 48 57 50 386
1319
15V 15V 1320
20V 20V 1321
5 + 5 PINS

4.5V 4.5V 1322
12 0/120V 6V 6V 1323
9V 9V
CLAMP 0/120V 12V 12V 1324 51 62 50 441
1325
15V 15V 1326
20V 20V 1327
TERMINAL SHROUDS AVAILABLE

4.5V 4.5V 1328
20 0/120V 6V 6V 1329
1330
9V 9V
CLAMP 0/120V 12V 12V 1331 59 69 57 647
15V 15V 1332
17.5V 17.5V 1333
20V 20V 1334
TERMINAL SHROUDS AVAILABLE

4.5V 4.5V 1335
50 0/120V 6V 6V 1336
9V 9V
CLAMP 0/120V 12V 12V 1337 66 81 64 1050
1338
15V 15V 1339
20V 20V 1340
TERMINAL SHROUDS AVAILABLE

CLAMP FRAME

ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
