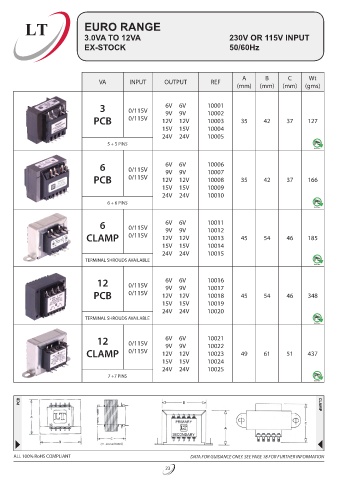

Page 27 - Louth Transformer Catalogue

LT EURO RANGE
3.0VA TO 12VA 230V OR 115V INPUT
EX-STOCK 50/60Hz

A B C Wt
VA INPUT OUTPUT REF
(mm) (mm) (mm) (gms)
3 0/115V 6V 6V 10001
10002
9V 9V
PCB 0/115V 12V 12V 10003 35 42 37 127
15V 15V 10004
24V 24V 10005
5 + 5 PINS

6 0/115V 6V 6V 10006
9V 9V
10007
PCB 0/115V 12V 12V 10008 35 42 37 166
15V 15V 10009
24V 24V 10010
6 + 6 PINS

6 0/115V 6V 6V 10011
9V 9V
CLAMP 0/115V 12V 12V 10012 45 54 46 185
10013
15V 15V 10014
24V 24V 10015
TERMINAL SHROUDS AVAILABLE

12 0/115V 6V 6V 10016
9V 9V
10017
PCB 0/115V 12V 12V 10018 45 54 46 348
15V 15V 10019
24V 24V 10020
TERMINAL SHROUDS AVAILABLE

12 0/115V 6V 6V 10021
10022
9V 9V
CLAMP 0/115V 12V 12V 10023 49 61 51 437
15V 15V 10024
24V 24V 10025
7 +7 PINS

PCB CLAMP

ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
