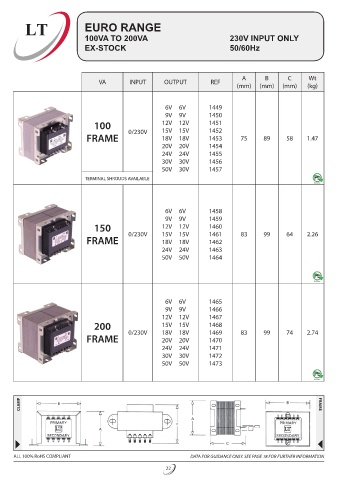

Page 26 - Louth Transformer Catalogue

LT EURO RANGE
100VA TO 200VA 230V INPUT ONLY
EX-STOCK 50/60Hz

A B C Wt
VA INPUT OUTPUT REF
(mm) (mm) (mm) (kg)
6V 6V 1449
9V 9V 1450
100 12V 12V 1451
1452
15V 15V
FRAME 0/230V 18V 18V 1453 75 89 58 1.47
20V 20V 1454
24V 24V 1455
30V 30V 1456
50V 30V 1457
TERMINAL SHROUDS AVAILABLE

6V 6V 1458
9V 9V 1459
150 12V 12V 1460
FRAME 0/230V 15V 15V 1461 83 99 64 2.26
1462
18V 18V
24V 24V 1463
50V 50V 1464

6V 6V 1465
9V 9V 1466
12V 12V 1467
200 15V 15V 1468
FRAME 0/230V 18V 18V 1469 83 99 74 2.74
1470
20V 20V
24V 24V 1471
30V 30V 1472
50V 50V 1473

CLAMP FRAME

ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
22
