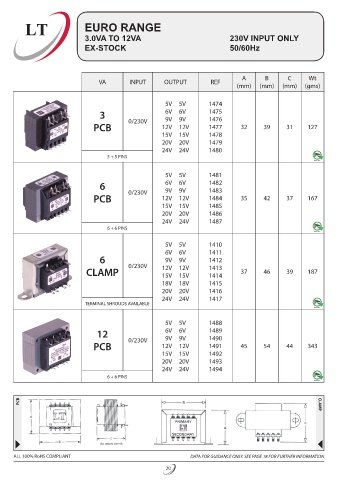

LT EURO RANGE
3.0VA TO 12VA 230V INPUT ONLY
EX-STOCK 50/60Hz

A B C Wt
VA INPUT OUTPUT REF
(mm) (mm) (mm) (gms)
5V 5V 1474
3 6V 6V 1475
9V 9V
1476
PCB 0/230V 12V 12V 1477 32 39 31 127
15V 15V 1478
20V 20V 1479
24V 24V 1480
5 + 5 PINS
5V 5V 1481
6 6V 6V 1482
1483
9V 9V
PCB 0/230V 12V 12V 1484 35 42 37 167
15V 15V 1485
20V 20V 1486
24V 24V 1487
6 + 6 PINS
5V 5V 1410
6V 6V 1411
6 9V 9V 1412
CLAMP 0/230V 12V 12V 1413 37 46 39 187
15V 15V
1414
18V 18V 1415
20V 20V 1416
24V 24V 1417
TERMINAL SHROUDS AVAILABLE
5V 5V 1488
12 6V 6V 1489
9V 9V
1490
PCB 0/230V 12V 12V 1491 45 54 44 343
15V 15V 1492
20V 20V 1493
24V 24V 1494
6 + 6 PINS

PCB CLAMP

ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
