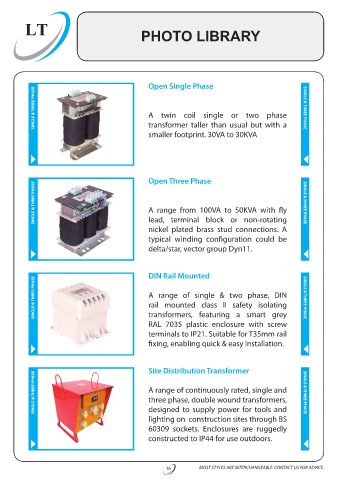

LT PHOTO LIBRARY

Open Single Phase
SINGLE & THREE PHASE A twin coil single or two phase SINGLE & THREE PHASE

transformer taller than usual but with a
smaller footprint. 30VA to 30KVA

Open Three Phase
SINGLE & THREE PHASE A range from 100VA to 50KVA with fly SINGLE & THREE PHASE

lead, terminal block or non-rotating
nickel plated brass stud connections. A
typical winding configuration could be
delta/star, vector group Dyn11.

DIN Rail Mounted
SINGLE & THREE PHASE A range of single & two phase, DIN SINGLE & THREE PHASE

rail mounted class II safety isolating
transformers, featuring a smart grey
RAL 7035 plastic enclosure with screw
terminals to IP21. Suitable for T35mm rail
fixing, enabling quick & easy installation.

Site Distribution Transformer
SINGLE & THREE PHASE A range of continuously rated, single and SINGLE & THREE PHASE

three phase, double wound transformers,
designed to supply power for tools and
lighting on construction sites through BS
60309 sockets. Enclosures are ruggedly
constructed to IP44 for use outdoors.

16 MOST STYLES ARE INTERCHANGEABLE. CONTACT US FOR ADVICE.
