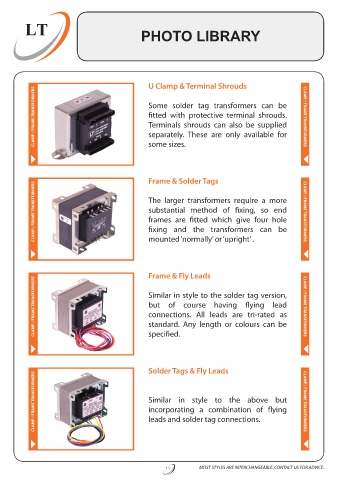

LT PHOTO LIBRARY

U Clamp & Terminal Shrouds
CLAMP / FRAME TRANSFORMERS Some solder tag transformers can be CLAMP / FRAME TRANSFORMERS

fitted with protective terminal shrouds.
Terminals shrouds can also be supplied
separately. These are only available for
some sizes.

Frame & Solder Tags
CLAMP / FRAME TRANSFORMERS The larger transformers require a more CLAMP / FRAME TRANSFORMERS

substantial method of fixing, so end
frames are fitted which give four hole
fixing and the transformers can be
mounted ‘normally’ or ‘upright’ .

Frame & Fly Leads
CLAMP / FRAME TRANSFORMERS Similar in style to the solder tag version, CLAMP / FRAME TRANSFORMERS

but of course having flying lead
connections. All leads are tri-rated as
standard. Any length or colours can be
specified.

Solder Tags & Fly Leads
CLAMP / FRAME TRANSFORMERS Similar in style to the above but CLAMP / FRAME TRANSFORMERS

incorporating a combination of flying
leads and solder tag connections.

11 MOST STYLES ARE INTERCHANGEABLE. CONTACT US FOR ADVICE.
