Page 12 - Louth Transformer Catalogue

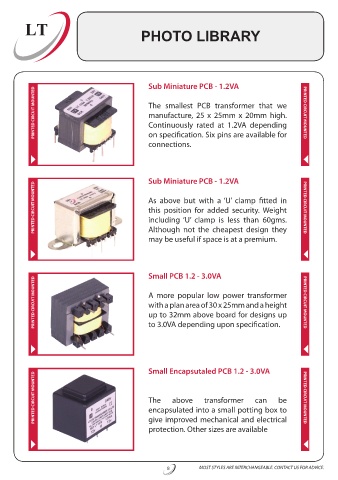

LT PHOTO LIBRARY

Sub Miniature PCB - 1.2VA
PRINTED CIRCUIT MOUNTED The smallest PCB transformer that we PRINTED CIRCUIT MOUNTED

manufacture, 25 x 25mm x 20mm high.
Continuously rated at 1.2VA depending
on specification. Six pins are available for
connections.

Sub Miniature PCB - 1.2VA
PRINTED CIRCUIT MOUNTED As above but with a ‘U’ clamp fitted in PRINTED CIRCUIT MOUNTED

this position for added security. Weight
including ‘U’ clamp is less than 60gms.
Although not the cheapest design they
may be useful if space is at a premium.

Small PCB 1.2 - 3.0VA
PRINTED CIRCUIT MOUNTED A more popular low power transformer PRINTED CIRCUIT MOUNTED

with a plan area of 30 x 25mm and a height
up to 32mm above board for designs up
to 3.0VA depending upon specification.

Small Encapsutaled PCB 1.2 - 3.0VA
PRINTED CIRCUIT MOUNTED The above transformer can be PRINTED CIRCUIT MOUNTED

encapsulated into a small potting box to
give improved mechanical and electrical
protection. Other sizes are available

8 MOST STYLES ARE INTERCHANGEABLE. CONTACT US FOR ADVICE.
