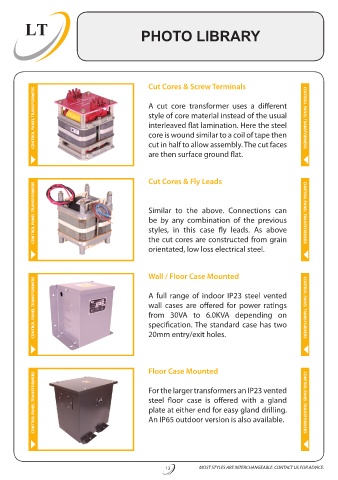

LT PHOTO LIBRARY

Cut Cores & Screw Terminals
CONTROL PANEL TRANSFORMERS A cut core transformer uses a different CONTROL PANEL TRANSFORMERS

style of core material instead of the usual
interleaved flat lamination. Here the steel
core is wound similar to a coil of tape then
cut in half to allow assembly. The cut faces
are then surface ground flat.

Cut Cores & Fly Leads
CONTROL PANEL TRANSFORMERS Similar to the above. Connections can CONTROL PANEL TRANSFORMERS

be by any combination of the previous
styles, in this case fly leads. As above
the cut cores are constructed from grain
orientated, low loss electrical steel.

Wall / Floor Case Mounted
CONTROL PANEL TRANSFORMERS A full range of indoor IP23 steel vented CONTROL PANEL TRANSFORMERS

wall cases are offered for power ratings
from 30VA to 6.0KVA depending on
specification. The standard case has two
20mm entry/exit holes.

Floor Case Mounted
CONTROL PANEL TRANSFORMERS For the larger transformers an IP23 vented CONTROL PANEL TRANSFORMERS

steel floor case is offered with a gland
plate at either end for easy gland drilling.
An IP65 outdoor version is also available.

13 MOST STYLES ARE INTERCHANGEABLE. CONTACT US FOR ADVICE.
