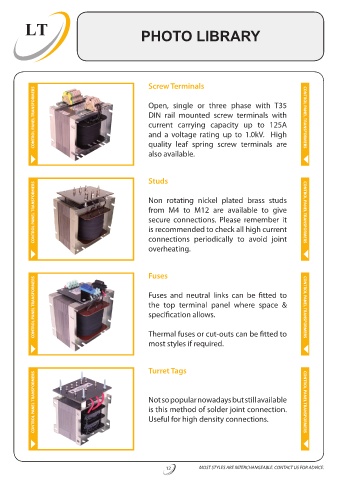

LT PHOTO LIBRARY

Screw Terminals
CONTROL PANEL TRANSFORMERS Open, single or three phase with T35 CONTROL PANEL TRANSFORMERS

DIN rail mounted screw terminals with
current carrying capacity up to 125A
and a voltage rating up to 1.0kV. High
quality leaf spring screw terminals are
also available.

Studs
CONTROL PANEL TRANSFORMERS Non rotating nickel plated brass studs CONTROL PANEL TRANSFORMERS

from M4 to M12 are available to give
secure connections. Please remember it
is recommended to check all high current
connections periodically to avoid joint
overheating.

Fuses
CONTROL PANEL TRANSFORMERS Fuses and neutral links can be fitted to CONTROL PANEL TRANSFORMERS

the top terminal panel where space &
specification allows.

Thermal fuses or cut-outs can be fitted to
most styles if required.

Turret Tags
CONTROL PANEL TRANSFORMERS Not so popular nowadays but still available CONTROL PANEL TRANSFORMERS

is this method of solder joint connection.
Useful for high density connections.

12 MOST STYLES ARE INTERCHANGEABLE. CONTACT US FOR ADVICE.
