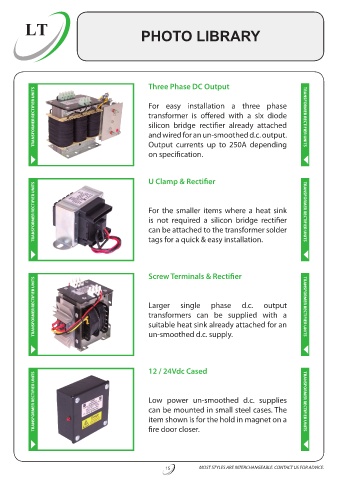

LT PHOTO LIBRARY

Three Phase DC Output
TRANSFORMER RECTIFIER UNITS For easy installation a three phase TRANSFORMER RECTIFIER UNITS

transformer is offered with a six diode
silicon bridge rectifier already attached
and wired for an un-smoothed d.c. output.
Output currents up to 250A depending
on specification.

U Clamp & Rectifier
TRANSFORMER RECTIFIER UNITS For the smaller items where a heat sink TRANSFORMER RECTIFIER UNITS

is not required a silicon bridge rectifier
can be attached to the transformer solder
tags for a quick & easy installation.

Screw Terminals & Rectifier
TRANSFORMER RECTIFIER UNITS Larger single phase d.c. output TRANSFORMER RECTIFIER UNITS

transformers can be supplied with a
suitable heat sink already attached for an
un-smoothed d.c. supply.

12 / 24Vdc Cased
TRANSFORMER RECTIFIER UNITS Low power un-smoothed d.c. supplies TRANSFORMER RECTIFIER UNITS

can be mounted in small steel cases. The
item shown is for the hold in magnet on a
fire door closer.

15 MOST STYLES ARE INTERCHANGEABLE. CONTACT US FOR ADVICE.
