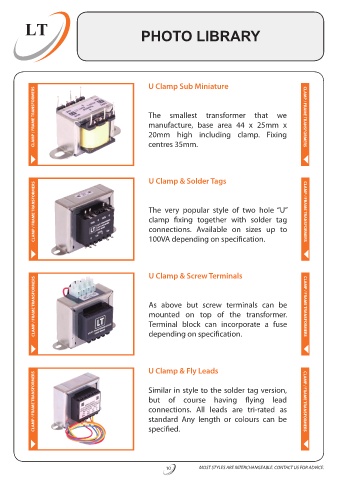

Page 14 - Louth Transformer Catalogue

LT PHOTO LIBRARY

U Clamp Sub Miniature
CLAMP / FRAME TRANSFORMERS The smallest transformer that we CLAMP / FRAME TRANSFORMERS

manufacture, base area 44 x 25mm x
20mm high including clamp. Fixing
centres 35mm.

U Clamp & Solder Tags
CLAMP / FRAME TRANSFORMERS The very popular style of two hole “U” CLAMP / FRAME TRANSFORMERS

clamp fixing together with solder tag
connections. Available on sizes up to
100VA depending on specification.

U Clamp & Screw Terminals
CLAMP / FRAME TRANSFORMERS As above but screw terminals can be CLAMP / FRAME TRANSFORMERS

mounted on top of the transformer.
Terminal block can incorporate a fuse
depending on specification.

U Clamp & Fly Leads
CLAMP / FRAME TRANSFORMERS Similar in style to the solder tag version, CLAMP / FRAME TRANSFORMERS

but of course having flying lead
connections. All leads are tri-rated as
standard Any length or colours can be
specified.

10 MOST STYLES ARE INTERCHANGEABLE. CONTACT US FOR ADVICE.
