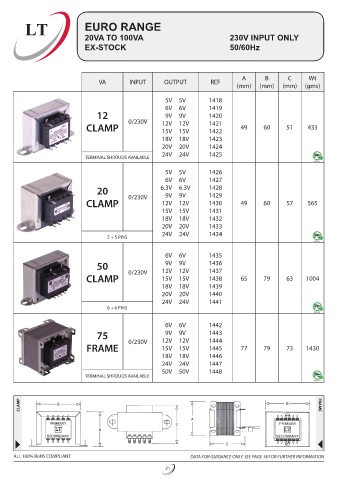

Page 25 - Louth Transformer Catalogue

LT EURO RANGE
20VA TO 100VA 230V INPUT ONLY
EX-STOCK 50/60Hz

A B C Wt
VA INPUT OUTPUT REF
(mm) (mm) (mm) (gms)
5V 5V 1418
6V 6V 1419
12 9V 9V 1420
CLAMP 0/230V 12V 12V 1421 49 60 51 433
15V 15V
1422
18V 18V 1423
20V 20V 1424
24V 24V 1425
TERMINAL SHROUDS AVAILABLE
5V 5V 1426
6V 6V 1427
20 6.3V 6.3V 1428
9V 9V
1429
CLAMP 0/230V 12V 12V 1430 49 60 57 565
15V 15V 1431
18V 18V 1432
20V 20V 1433
24V 24V 1434
5 + 5 PINS
6V 6V 1435
9V 9V
50 12V 12V 1436
1437
CLAMP 0/230V 15V 15V 1438 65 79 63 1004
18V 18V 1439
20V 20V 1440
24V 24V 1441
6 + 6 PINS

6V 6V 1442
9V 9V
75 12V 12V 1443
1444
FRAME 0/230V 15V 15V 1445 77 79 73 1430
18V 18V 1446
24V 24V 1447
50V 50V 1448
TERMINAL SHROUDS AVAILABLE

CLAMP FRAME

ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
21
