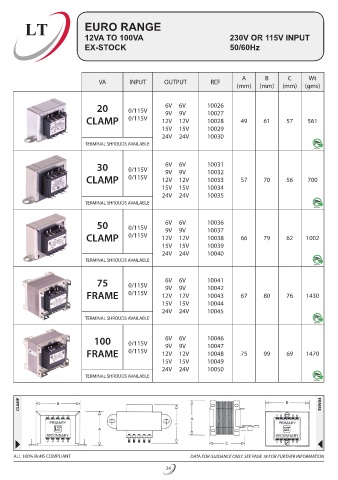

LT EURO RANGE
12VA TO 100VA 230V OR 115V INPUT
EX-STOCK 50/60Hz

A B C Wt
VA INPUT OUTPUT REF
(mm) (mm) (mm) (gms)
20 0/115V 6V 6V 10026
10027
9V 9V
CLAMP 0/115V 12V 12V 10028 49 61 57 561
15V 15V 10029
24V 24V 10030
TERMINAL SHROUDS AVAILABLE

30 0/115V 6V 6V 10031
10032
9V 9V
CLAMP 0/115V 12V 12V 10033 57 70 56 700
15V 15V 10034
24V 24V 10035
TERMINAL SHROUDS AVAILABLE

50 0/115V 6V 6V 10036
9V 9V
CLAMP 0/115V 12V 12V 10037 66 79 62 1002
10038
15V 15V 10039
24V 24V 10040
TERMINAL SHROUDS AVAILABLE

75 0/115V 6V 6V 10041
10042
9V 9V
FRAME 0/115V 12V 12V 10043 67 80 76 1430
15V 15V 10044
24V 24V 10045
TERMINAL SHROUDS AVAILABLE

100 0/115V 6V 6V 10046
10047
9V 9V
FRAME 0/115V 12V 12V 10048 75 99 69 1470
15V 15V 10049
24V 24V 10050
TERMINAL SHROUDS AVAILABLE

CLAMP FRAME

ALL 100% RoHS COMPLIANT DATA FOR GUIDANCE ONLY. SEE PAGE 18 FOR FURTHER INFORMATION
