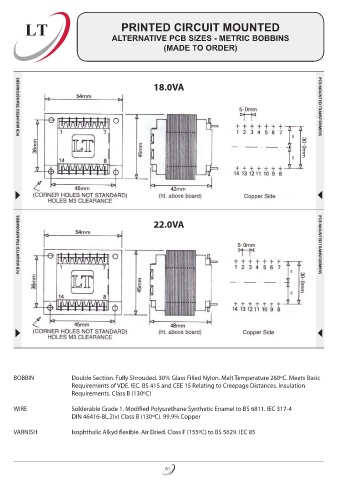

LT PRINTED CIRCUIT MOUNTED
ALTERNATIVE PCB SIZES - METRIC BOBBINS
(MADE TO ORDER)
PCB MOUNTED TRANSFORMERS 18.0VA PCB MOUNTED TRANSFORMERS
PCB MOUNTED TRANSFORMERS 22.0VA PCB MOUNTED TRANSFORMERS
BOBBIN Double Section. Fully Shrouded. 30% Glass Filled Nylon. Melt Temperature 260ºC. Meets Basic
Requirements of VDE. IEC. BS 415 and CEE 15 Relating to Creepage Distances. Insulation
Requirements. Class B (130ºC)
WIRE Solderable Grade 1. Modified Polyurethane Synthetic Enamel to BS 6811. IEC 317-4
DIN 46416-BL.2(v) Class B (130ºC). 99.9% Copper
VARNISH Isophthalic Alkyd flexible. Air Dried. Class F (155ºC) to BS 5629. IEC 85
