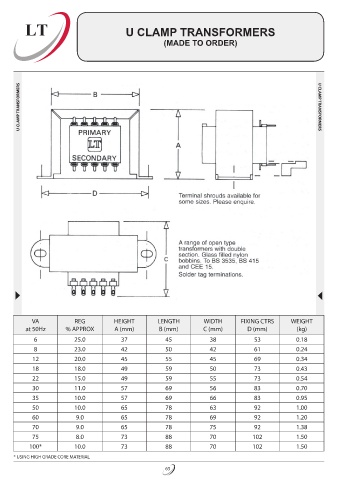

LT U CLAMP TRANSFORMERS
(MADE TO ORDER)
U CLAMP TRANSFORMERS U CLAMP TRANSFORMERS
VA REG HEIGHT LENGTH WIDTH FIXING CTRS WEIGHT
at 50Hz % APPROX A (mm) B (mm) C (mm) D (mm) (kg)
6 25.0 37 45 38 53 0.18
8 23.0 42 50 42 61 0.24
12 20.0 45 55 45 69 0.34
18 18.0 49 59 50 73 0.43
22 15.0 49 59 55 73 0.54
30 11.0 57 69 56 83 0.70
35 10.0 57 69 66 83 0.95
50 10.0 65 78 63 92 1.00
60 9.0 65 78 69 92 1.20
70 9.0 65 78 75 92 1.38
75 8.0 73 88 70 102 1.50
100* 10.0 73 88 70 102 1.50
* USING HIGH GRADE CORE MATERIAL
