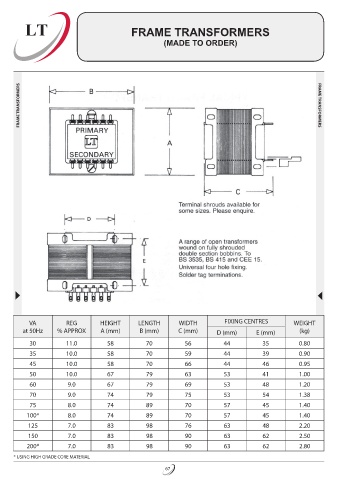

Page 71 - Louth Transformer Catalogue

LT FRAME TRANSFORMERS

(MADE TO ORDER)

FRAME TRANSFORMERS FRAME TRANSFORMERS

VA REG HEIGHT LENGTH WIDTH FIXING CENTRES WEIGHT
at 50Hz % APPROX A (mm) B (mm) C (mm) D (mm) E (mm) (kg)
30 11.0 58 70 56 44 35 0.80
35 10.0 58 70 59 44 39 0.90
45 10.0 58 70 66 44 46 0.95
50 10.0 67 79 63 53 41 1.00
60 9.0 67 79 69 53 48 1.20
70 9.0 74 79 75 53 54 1.38
75 8.0 74 89 70 57 45 1.40
100* 8.0 74 89 70 57 45 1.40
125 7.0 83 98 76 63 48 2.20
150 7.0 83 98 90 63 62 2.50
200* 7.0 83 98 90 63 62 2.80
* USING HIGH GRADE CORE MATERIAL
