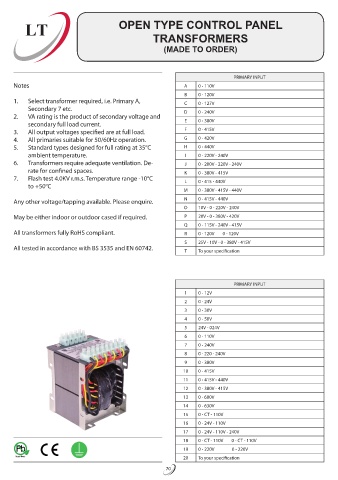

LT OPEN TYPE CONTROL PANEL
TRANSFORMERS
(MADE TO ORDER)

PRIMARY INPUT
Notes A 0 - 110V
B 0 - 120V
1. Select transformer required, i.e. Primary A, C 0 - 127V
Secondary 7 etc. D 0 - 240V
2. VA rating is the product of secondary voltage and
secondary full load current. E 0 - 380V
3. All output voltages specified are at full load. F 0 - 415V
4. All primaries suitable for 50/60Hz operation. G 0 - 420V
5. Standard types designed for full rating at 35°C H 0 - 440V
ambient temperature. I 0 - 220V - 240V
6. Transformers require adequate ventilation. De- J 0 - 200V - 220V - 240V
rate for confined spaces. K 0 - 380V - 415V
7. Flash test 4.0KV r.m.s. Temperature range -10°C L 0 - 415 - 440V
to +50°C
M 0 - 380V - 415V - 440V
Any other voltage/tapping available. Please enquire. N 0 - 415V - 440V
O 10V - 0 - 220V - 240V
May be either indoor or outdoor cased if required. P 20V - 0 - 380V - 420V
Q 0 - 115V - 240V - 415V
All transformers fully RoHS compliant. R 0 - 120V 0 - 120V
S 25V - 10V - 0 - 380V - 415V
All tested in accordance with BS 3535 and EN 60742. T To your specification

PRIMARY INPUT
1 0 - 12V
2 0 - 24V
3 0 - 30V
4 0 - 50V
5 24V - 024V
6 0 - 110V
7 0 - 240V
8 0 - 220 - 240V
9 0 - 380V
10 0 - 415V
11 0 - 415V - 440V
12 0 - 380V - 415V
13 0 - 600V
14 0 - 630V
15 0 - CT - 110V
16 0 - 24V - 110V
17 0 - 24V - 110V - 240V
18 0 - CT - 110V 0 - CT - 110V
19 0 - 220V 0 - 220V
20 To your specification
