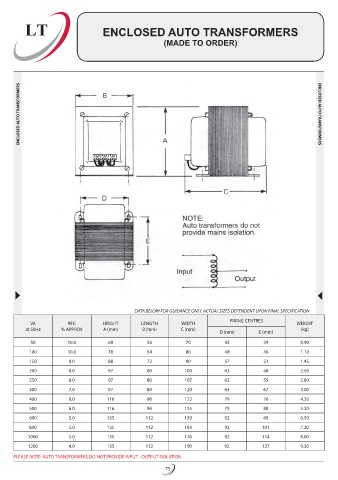

LT ENCLOSED AUTO TRANSFORMERS

(MADE TO ORDER)

ENCLOSED AUTO TRANSFORMERS ENCLOSED AUTO TRANSFORMERS

DATA BELOW FOR GUIDANCE ONLY. ACTUAL SIZES DEPENDENT UPON FINAL SPECIFICATION
VA REG HEIGHT LENGTH WIDTH FIXING CENTRES WEIGHT
at 50Hz % APPROX A (mm) B (mm) C (mm) (kg)
D (mm) E (mm)
50 10.0 69 56 70 45 39 0.90
100 10.0 78 64 80 48 46 1.10
150 9.0 88 72 90 57 51 1.45
200 8.0 97 80 100 63 48 2.50
250 8.0 97 80 107 63 55 2.80
300 7.0 97 80 120 63 67 3.00
400 6.0 116 96 123 79 76 4.30
500 6.0 116 96 135 79 88 5.20
600 5.0 135 112 150 92 89 6.50
800 5.0 135 112 163 92 101 7.20
1000 5.0 135 112 176 92 114 8.00
1200 4.0 135 112 190 92 127 9.30
PLEASE NOTE: AUTO TRANSFORMERS DO NOT PROVIDE INPUT - OUTPUT ISOLATION
