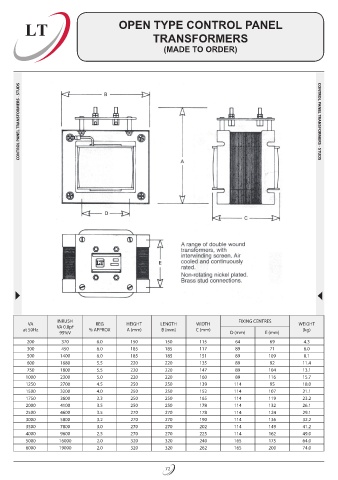

Page 76 - Louth Transformer Catalogue
P. 76
LT OPEN TYPE CONTROL PANEL
TRANSFORMERS
(MADE TO ORDER)
CONTROL PANEL TRANSFORMERS - STUDS CONTROL PANEL TRANSFORMERS - STUDS
INRUSH FIXING CENTRES
VA VA 0.8pf REG HEIGHT LENGTH WIDTH WEIGHT
at 50Hz % APPROX A (mm) B (mm) C (mm) (kg)
95%V D (mm) E (mm)
200 370 6.0 150 150 115 64 69 4.3
300 450 6.0 185 185 117 89 71 6.0
500 1400 6.0 185 185 151 89 109 8.1
600 1680 5.5 220 220 135 89 92 11.4
750 1800 5.5 220 220 147 89 104 13.1
1000 2300 5.0 220 220 160 89 116 15.7
1250 2700 4.5 250 250 139 114 95 18.0
1500 3200 4.0 250 250 152 114 107 21.1
1750 3600 3.3 250 250 165 114 119 23.2
2000 4100 3.5 250 250 178 114 132 26.1
2500 4600 3.5 270 270 178 114 124 29.1
3000 5800 3.2 270 270 190 114 136 32.2
3500 7800 3.0 270 270 202 114 149 41.2
4000 9600 2.5 270 270 225 114 162 49.0
5000 16000 2.0 320 320 240 165 175 64.0
6000 19000 2.0 320 320 262 165 200 74.0
72
