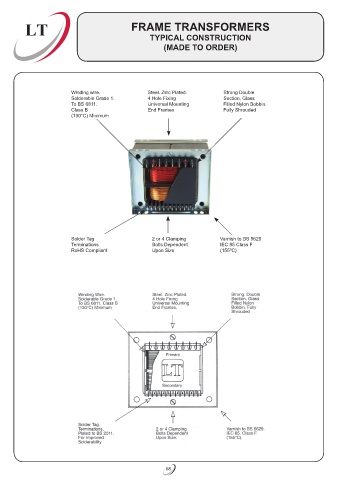

LT FRAME TRANSFORMERS
TYPICAL CONSTRUCTION
(MADE TO ORDER)
Winding wire. Steel. Zinc Plated. Strong Double
Solderable Grade 1. 4 Hole Fixing Section, Glass
To BS 6811. Universal Mounting Filled Nylon Bobbin.
Class B End Frames Fully Shrouded
(130°C) Minimum
Solder Tag 2 or 4 Clamping Varnish to BS 5629
Terminations Bolts Dependent IEC 85 Class F
RoHS Compliant Upon Size (155ºC)
68
