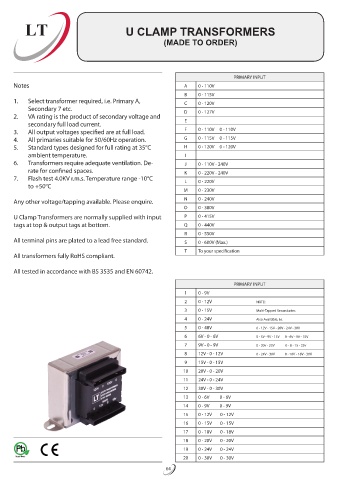

LT U CLAMP TRANSFORMERS

(MADE TO ORDER)

PRIMARY INPUT
Notes A 0 - 110V
B 0 - 115V
1. Select transformer required, i.e. Primary A, C 0 - 120V
Secondary 7 etc. D 0 - 127V
2. VA rating is the product of secondary voltage and
secondary full load current. E
3. All output voltages specified are at full load. F 0 - 110V 0 - 110V
4. All primaries suitable for 50/60Hz operation. G 0 - 115V 0 - 115V
5. Standard types designed for full rating at 35°C H 0 - 120V 0 - 120V
ambient temperature. I
6. Transformers require adequate ventilation. De- J 0 - 110V - 240V
rate for confined spaces. K 0 - 220V - 240V
7. Flash test 4.0KV r.m.s. Temperature range -10°C L 0 - 220V
to +50°C
M 0 - 230V
Any other voltage/tapping available. Please enquire. N 0 - 240V
O 0 - 380V
U Clamp Transformers are normally supplied with input P 0 - 415V
tags at top & output tags at bottom. Q 0 - 440V
R 0 - 550V
All terminal pins are plated to a lead free standard. S 0 - 600V (Max.)
T To your specification
All transformers fully RoHS compliant.

All tested in accordance with BS 3535 and EN 60742.
PRIMARY INPUT
1 0 - 9V
2 0 - 12V NOTE:
3 0 - 15V Multi-Tapped Secondaries
4 0 - 24V Also Available, i.e.
5 0 - 48V 0 - 12V - 15V - 20V - 24V - 30V
6 6V - 0 - 6V 0 - 5V - 9V - 15V 0 - 6V - 9V - 15V
7 9V - 0 - 9V 0 - 20v - 25V 0 - 8 - 15 - 25v
8 12V - 0 - 12V 0 - 24V - 30V 0 - 10V - 18V - 30V
9 15V - 0 - 15V
10 20V - 0 - 20V
11 24V - 0 - 24V
12 30V - 0 - 30V
13 0 - 6V 0 - 6V
14 0 - 9V 0 - 9V
15 0 - 12V 0 - 12V
16 0 - 15V 0 - 15V
17 0 - 18V 0 - 18V
18 0 - 20V 0 - 20V
19 0 - 24V 0 - 24V
20 0 - 30V 0 - 30V
64
