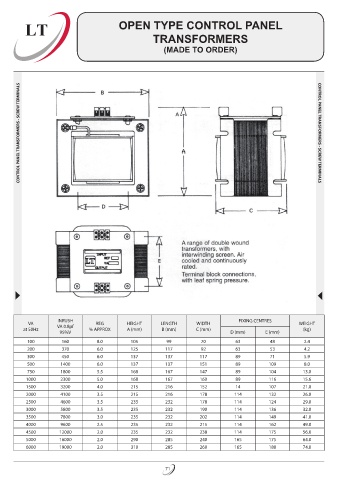

LT OPEN TYPE CONTROL PANEL
TRANSFORMERS
(MADE TO ORDER)
CONTROL PANEL TRANSFORMERS - SCREW TERMINALS CONTROL PANEL TRANSFORMERS - SCREW TERMINALS
VA INRUSH REG HEIGHT LENGTH WIDTH FIXING CENTRES WEIGHT
at 50Hz VA 0.8pf % APPROX A (mm) B (mm) C (mm) (kg)
95%V D (mm) E (mm)
100 160 8.0 105 99 70 63 48 2.4
200 370 6.0 125 117 92 63 53 4.2
300 450 6.0 137 137 117 89 71 5.9
500 1400 6.0 137 137 151 89 109 8.0
750 1800 5.5 168 167 147 89 104 13.0
1000 2300 5.0 168 167 160 89 116 15.6
1500 3200 4.0 215 216 152 14 107 21.0
2000 4100 3.5 215 216 178 114 132 26.0
2500 4600 3.5 235 232 178 114 124 29.0
3000 5800 3.5 235 232 190 114 136 32.0
3500 7800 3.0 235 232 202 114 149 41.0
4000 9600 2.5 235 232 215 114 162 49.0
4500 12000 2.0 235 232 238 114 175 56.0
5000 16000 2.0 290 285 240 165 175 64.0
6000 19000 2.0 310 285 260 165 180 74.0
