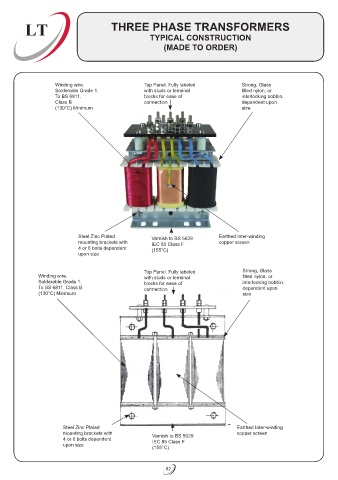

LT THREE PHASE TRANSFORMERS
TYPICAL CONSTRUCTION
(MADE TO ORDER)
Winding wire. Top Panel. Fully labeled Strong, Glass
Solderable Grade 1. with studs or terminal filled nylon, or
To BS 6811. blocks for ease of interlocking bobbin.
Class B connection dependent upon
(130°C) Minimum size
Steel Zinc Plated Varnish to BS 5629 Earthed Inter-winding
mounting brackets with IEC 85 Class F copper screen
4 or 6 bolts dependent (155°C)
upon size
Top Panel. Fully labeled Strong, Glass
Winding wire. with studs or terminal filled nylon, or
Solderable Grade 1. blocks for ease of interlocking bobbin.
To BS 6811. Class B connection dependent upon
(130°C) Minimum size
Steel Zinc Plated Earthed Inter-winding
mounting brackets with copper screen
4 or 6 bolts dependent Varnish to BS 5629
IEC 85 Class F
upon size (155°C)
