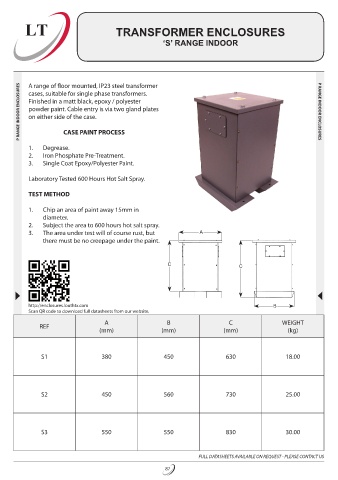

LT TRANSFORMER ENCLOSURES

‘S’ RANGE INDOOR

P RANGE INDOOR ENCLOSURES A range of floor mounted, IP23 steel transformer P RANGE INDOOR ENCLOSURES
cases, suitable for single phase transformers.
Finished in a matt black, epoxy / polyester
powder paint. Cable entry is via two gland plates
on either side of the case.
CASE PAINT PROCESS
1. Degrease.
2. Iron Phosphate Pre-Treatment.
3. Single Coat Epoxy/Polyester Paint.
Laboratory Tested 600 Hours Hot Salt Spray.

TEST METHOD
1. Chip an area of paint away 15mm in
diameter.
2. Subject the area to 600 hours hot salt spray.
3. The area under test will of course rust, but A
there must be no creepage under the paint.

C C

http://enclosures.louthtx.com B
Scan QR code to download full datasheets from our website.
A B C WEIGHT
REF
(mm) (mm) (mm) (kg)

S1 380 450 630 18.00

S2 450 560 730 25.00

S3 550 550 830 30.00

FULL DATASHEETS AVAILABLE ON REQUEST - PLEASE CONTACT US
