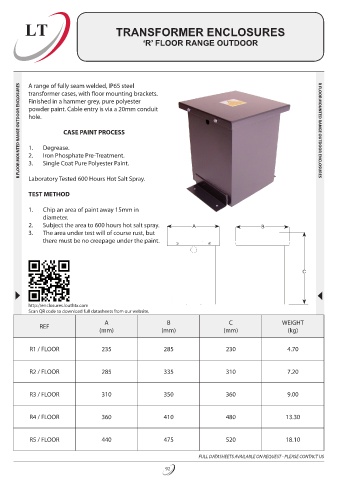

LT TRANSFORMER ENCLOSURES

‘R’ FLOOR RANGE OUTDOOR

A range of fully seam welded, IP65 steel
R FLOOR MOUNTED RANGE OUTDOOR ENCLOSURES transformer cases, with floor mounting brackets. R FLOOR MOUNTED RANGE OUTDOOR ENCLOSURES
Finished in a hammer grey, pure polyester
powder paint. Cable entry is via a 20mm conduit
hole.
CASE PAINT PROCESS
Degrease.
1.
Iron Phosphate Pre-Treatment.
2.
Single Coat Pure Polyester Paint.
3.
Laboratory Tested 600 Hours Hot Salt Spray.
TEST METHOD
1. Chip an area of paint away 15mm in
diameter.
2. Subject the area to 600 hours hot salt spray. A B
3. The area under test will of course rust, but
there must be no creepage under the paint.

C

http://enclosures.louthtx.com
Scan QR code to download full datasheets from our website.
A B C WEIGHT
REF
(mm) (mm) (mm) (kg)

R1 / FLOOR 235 285 230 4.70

R2 / FLOOR 285 335 310 7.20

R3 / FLOOR 310 350 360 9.00

R4 / FLOOR 360 410 480 13.30

R5 / FLOOR 440 475 520 18.10
FULL DATASHEETS AVAILABLE ON REQUEST - PLEASE CONTACT US
