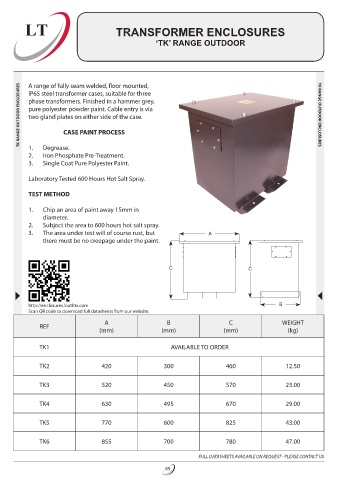

LT TRANSFORMER ENCLOSURES

‘TK’ RANGE OUTDOOR

TK RANGE OUTDOOR ENCLOSURES A range of fully seam welded, floor mounted, TK RANGE OUTDOOR ENCLOSURES
IP65 steel transformer cases, suitable for three
phase transformers. Finished in a hammer grey,
pure polyester powder paint. Cable entry is via
two gland plates on either side of the case.
CASE PAINT PROCESS
1.
Iron Phosphate Pre-Treatment.
2. Degrease.
3. Single Coat Pure Polyester Paint.
Laboratory Tested 600 Hours Hot Salt Spray.

TEST METHOD
1. Chip an area of paint away 15mm in
diameter.
2. Subject the area to 600 hours hot salt spray.
3. The area under test will of course rust, but A
there must be no creepage under the paint.

C C

http://enclosures.louthtx.com B
Scan QR code to download full datasheets from our website.
A B C WEIGHT
REF
(mm) (mm) (mm) (kg)
TK1 AVAILABLE TO ORDER

TK2 420 300 460 12.50

TK3 520 450 570 23.00

TK4 630 495 670 29.00

TK5 770 600 825 43.00

TK6 855 700 780 47.00
FULL DATASHEETS AVAILABLE ON REQUEST - PLEASE CONTACT US
