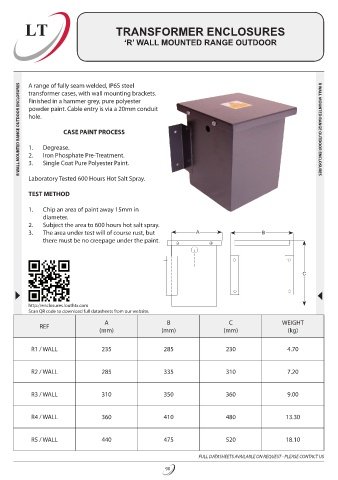

Page 94 - Louth Transformer Catalogue

LT TRANSFORMER ENCLOSURES

‘R’ WALL MOUNTED RANGE OUTDOOR

A range of fully seam welded, IP65 steel
R WALL MOUNTED RANGE OUTDOOR ENCLOSURES transformer cases, with wall mounting brackets. R WALL MOUNTED RANGE OUTDOOR ENCLOSURES
Finished in a hammer grey, pure polyester
powder paint. Cable entry is via a 20mm conduit
hole.
CASE PAINT PROCESS
Degrease.
1.
Iron Phosphate Pre-Treatment.
2.
Single Coat Pure Polyester Paint.
3.
Laboratory Tested 600 Hours Hot Salt Spray.
TEST METHOD

1. Chip an area of paint away 15mm in
diameter.
2. Subject the area to 600 hours hot salt spray.
3. The area under test will of course rust, but A B
there must be no creepage under the paint.

C

http://enclosures.louthtx.com
Scan QR code to download full datasheets from our website.
A B C WEIGHT
REF
(mm) (mm) (mm) (kg)

R1 / WALL 235 285 230 4.70

R2 / WALL 285 335 310 7.20

R3 / WALL 310 350 360 9.00

R4 / WALL 360 410 480 13.30

R5 / WALL 440 475 520 18.10
FULL DATASHEETS AVAILABLE ON REQUEST - PLEASE CONTACT US
