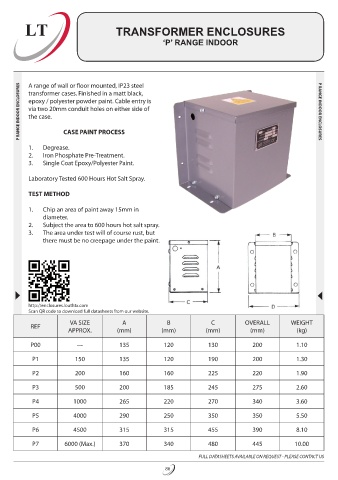

Page 90 - Louth Transformer Catalogue

LT TRANSFORMER ENCLOSURES

‘P’ RANGE INDOOR

P RANGE INDOOR ENCLOSURES A range of wall or floor mounted, IP23 steel P RANGE INDOOR ENCLOSURES
transformer cases. Finished in a matt black,
epoxy / polyester powder paint. Cable entry is
via two 20mm conduit holes on either side of
the case.
CASE PAINT PROCESS
1. Degrease.
2. Iron Phosphate Pre-Treatment.
3. Single Coat Epoxy/Polyester Paint.
Laboratory Tested 600 Hours Hot Salt Spray.
TEST METHOD

1. Chip an area of paint away 15mm in
diameter.
2. Subject the area to 600 hours hot salt spray.
3. The area under test will of course rust, but
there must be no creepage under the paint.

http://enclosures.louthtx.com
Scan QR code to download full datasheets from our website.
VA SIZE A B C OVERALL WEIGHT
REF
APPROX. (mm) (mm) (mm) (mm) (kg)
P00 --- 135 120 130 200 1.10
P1 150 135 120 190 200 1.30
P2 200 160 160 225 220 1.90
P3 500 200 185 245 275 2.60

P4 1000 265 220 270 340 3.60
P5 4000 290 250 350 350 5.50
P6 4500 315 315 455 390 8.10
P7 6000 (Max.) 370 340 480 445 10.00
FULL DATASHEETS AVAILABLE ON REQUEST - PLEASE CONTACT US
