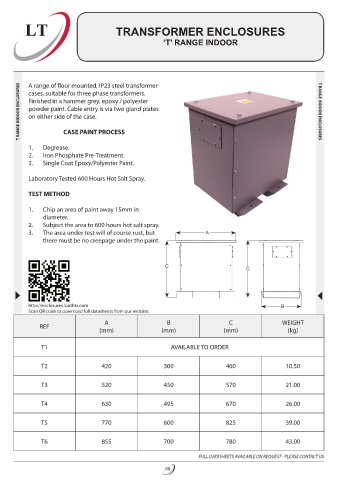

Page 92 - Louth Transformer Catalogue

LT TRANSFORMER ENCLOSURES

‘T’ RANGE INDOOR

T RANGE INDOOR ENCLOSURES A range of floor mounted, IP23 steel transformer T RANGE INDOOR ENCLOSURES
cases, suitable for three phase transformers.
Finished in a hammer grey, epoxy / polyester
powder paint. Cable entry is via two gland plates
on either side of the case.
CASE PAINT PROCESS
1. Degrease.
2. Iron Phosphate Pre-Treatment.
3. Single Coat Epoxy/Polyester Paint.
Laboratory Tested 600 Hours Hot Salt Spray.
TEST METHOD

1. Chip an area of paint away 15mm in
diameter.
2. Subject the area to 600 hours hot salt spray.
3. The area under test will of course rust, but A
there must be no creepage under the paint.

C C

http://enclosures.louthtx.com B
Scan QR code to download full datasheets from our website.
A B C WEIGHT
REF
(mm) (mm) (mm) (kg)
T1 AVAILABLE TO ORDER

T2 420 300 460 10.50

T3 520 450 570 21.00

T4 630 495 670 26.00

T5 770 600 825 39.00

T6 855 700 780 43.00
FULL DATASHEETS AVAILABLE ON REQUEST - PLEASE CONTACT US
