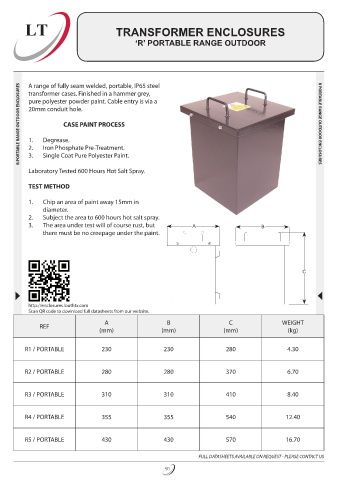

LT TRANSFORMER ENCLOSURES

‘R’ PORTABLE RANGE OUTDOOR

R PORTABLE RANGE OUTDOOR ENCLOSURES A range of fully seam welded, portable, IP65 steel R PORTABLE RANGE OUTDOOR ENCLOSURES
transformer cases. Finished in a hammer grey,
pure polyester powder paint. Cable entry is via a
20mm conduit hole.

CASE PAINT PROCESS
Degrease.
1.
2.
Iron Phosphate Pre-Treatment.
Single Coat Pure Polyester Paint.
3.
Laboratory Tested 600 Hours Hot Salt Spray.
TEST METHOD

1. Chip an area of paint away 15mm in
diameter.
2. Subject the area to 600 hours hot salt spray.
3. The area under test will of course rust, but A B
there must be no creepage under the paint.

C

http://enclosures.louthtx.com
Scan QR code to download full datasheets from our website.
A B C WEIGHT
REF
(mm) (mm) (mm) (kg)

R1 / PORTABLE 230 230 280 4.30

R2 / PORTABLE 280 280 370 6.70

R3 / PORTABLE 310 310 410 8.40

R4 / PORTABLE 355 355 540 12.40

R5 / PORTABLE 430 430 570 16.70
FULL DATASHEETS AVAILABLE ON REQUEST - PLEASE CONTACT US
91
