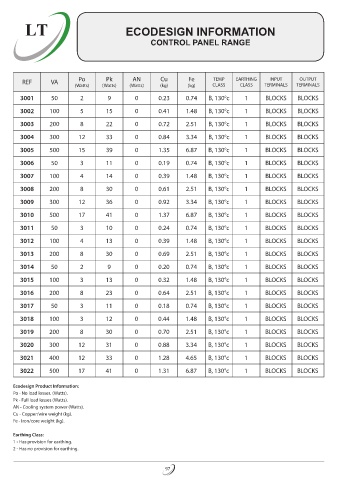

LT ECODESIGN INFORMATION

CONTROL PANEL RANGE

REF VA Po Pk AN Cu Fe TEMP EARTHING INPUT OUTPUT
(Watts) (Watts) (Watts) (kg) (kg) CLASS CLASS TERMINALS TERMINALS
3001 50 2 9 0 0.23 0.74 B, 130°c 1 BLOCKS BLOCKS

3002 100 5 15 0 0.41 1.48 B, 130°c 1 BLOCKS BLOCKS
3003 200 8 22 0 0.72 2.51 B, 130°c 1 BLOCKS BLOCKS
3004 300 12 33 0 0.84 3.34 B, 130°c 1 BLOCKS BLOCKS
3005 500 15 39 0 1.35 6.87 B, 130°c 1 BLOCKS BLOCKS
3006 50 3 11 0 0.19 0.74 B, 130°c 1 BLOCKS BLOCKS
3007 100 4 14 0 0.39 1.48 B, 130°c 1 BLOCKS BLOCKS
3008 200 8 30 0 0.61 2.51 B, 130°c 1 BLOCKS BLOCKS
3009 300 12 36 0 0.92 3.34 B, 130°c 1 BLOCKS BLOCKS
3010 500 17 41 0 1.37 6.87 B, 130°c 1 BLOCKS BLOCKS
3011 50 3 10 0 0.24 0.74 B, 130°c 1 BLOCKS BLOCKS
3012 100 4 13 0 0.39 1.48 B, 130°c 1 BLOCKS BLOCKS
3013 200 8 30 0 0.69 2.51 B, 130°c 1 BLOCKS BLOCKS
3014 50 2 9 0 0.20 0.74 B, 130°c 1 BLOCKS BLOCKS
3015 100 3 13 0 0.32 1.48 B, 130°c 1 BLOCKS BLOCKS
3016 200 8 23 0 0.64 2.51 B, 130°c 1 BLOCKS BLOCKS
3017 50 3 11 0 0.18 0.74 B, 130°c 1 BLOCKS BLOCKS
3018 100 3 12 0 0.44 1.48 B, 130°c 1 BLOCKS BLOCKS
3019 200 8 30 0 0.70 2.51 B, 130°c 1 BLOCKS BLOCKS
3020 300 12 31 0 0.88 3.34 B, 130°c 1 BLOCKS BLOCKS
3021 400 12 33 0 1.28 4.65 B, 130°c 1 BLOCKS BLOCKS
3022 500 17 41 0 1.31 6.87 B, 130°c 1 BLOCKS BLOCKS
Ecodesign Product Information:
Po - No load losses. (Watts).
Pk - Full load losses (Watts).
AN - Cooling system power (Watts).
Cu - Copper/wire weight (kg).
Fe - Iron/core weight (kg).
Earthing Class:
1 - Has provision for earthing.
2 - Has no provision for earthing.

97
