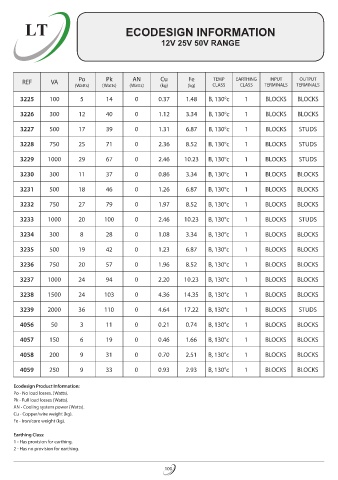

LT ECODESIGN INFORMATION

12V 25V 50V RANGE

REF VA Po Pk AN Cu Fe TEMP EARTHING INPUT OUTPUT
(Watts) (Watts) (Watts) (kg) (kg) CLASS CLASS TERMINALS TERMINALS
3225 100 5 14 0 0.37 1.48 B, 130°c 1 BLOCKS BLOCKS
3226 300 12 40 0 1.12 3.34 B, 130°c 1 BLOCKS BLOCKS
3227 500 17 39 0 1.31 6.87 B, 130°c 1 BLOCKS STUDS

3228 750 25 71 0 2.36 8.52 B, 130°c 1 BLOCKS STUDS
3229 1000 29 67 0 2.46 10.23 B, 130°c 1 BLOCKS STUDS
3230 300 11 37 0 0.86 3.34 B, 130°c 1 BLOCKS BLOCKS

3231 500 18 46 0 1.26 6.87 B, 130°c 1 BLOCKS BLOCKS
3232 750 27 79 0 1.97 8.52 B, 130°c 1 BLOCKS BLOCKS
3233 1000 20 100 0 2.46 10.23 B, 130°c 1 BLOCKS STUDS

3234 300 8 28 0 1.08 3.34 B, 130°c 1 BLOCKS BLOCKS
3235 500 19 42 0 1.23 6.87 B, 130°c 1 BLOCKS BLOCKS
3236 750 20 57 0 1.96 8.52 B, 130°c 1 BLOCKS BLOCKS

3237 1000 24 94 0 2.20 10.23 B, 130°c 1 BLOCKS BLOCKS
3238 1500 24 103 0 4.36 14.35 B, 130°c 1 BLOCKS BLOCKS
3239 2000 36 110 0 4.64 17.22 B, 130°c 1 BLOCKS STUDS

4056 50 3 11 0 0.21 0.74 B, 130°c 1 BLOCKS BLOCKS
4057 150 6 19 0 0.46 1.66 B, 130°c 1 BLOCKS BLOCKS
4058 200 9 31 0 0.70 2.51 B, 130°c 1 BLOCKS BLOCKS

4059 250 9 33 0 0.93 2.93 B, 130°c 1 BLOCKS BLOCKS
Ecodesign Product Information:
Po - No load losses. (Watts).
Pk - Full load losses (Watts).
AN - Cooling system power (Watts).
Cu - Copper/wire weight (kg).
Fe - Iron/core weight (kg).
Earthing Class:
1 - Has provision for earthing.
2 - Has no provision for earthing.
